Dewatering Ore Gold Mining Machine Rotary Drum Filter , Rotary Drum Filter

1.0 Sets
MOQ
$24,000.00(1 - 5 Sets) $23,000.00(>=6 Sets)
価格

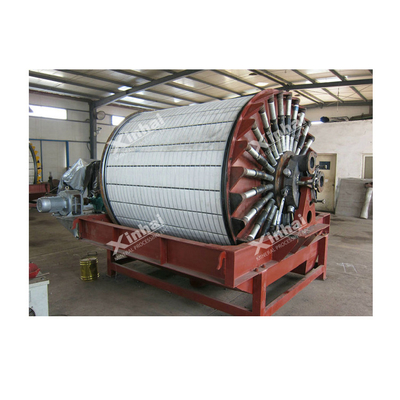

Dewatering Ore Gold Mining Machine Rotary Drum Filter , Rotary Drum Filter
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Applicable Industries: Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product
Warranty of core components: 1 Year
Core Components: Engine
Material: steel
Weight: 2950kg
Size: 1750*1320*1640mm
Power: 30kw
Warranty: 1 Year
Productivity: 3~50m²
after sale service: whole using life
installation: technical guidance
price: negotiable
color: as your require
Product name: rotary drum filter
Application: ore dewatering
証明: ISO
Name: drum filter
Package: Carton
Usage: mining dewatering
After Warranty Service: Online support
Local Service Location: None
After-sales Service Provided: Field installation, commissioning and training
基本情報
証明: ISO
お支払配送条件
Packaging Details: as your require
Supply Ability: 100 Set/Sets per Month drum filter
製品の説明
Product Advantages
Rotating Drum Filter——Product Advantage
Cylindrical external filtration type filter is normal filter realizing stepless speed change by adjusting the motor revolution.
It has the advantages of simple structure, low price, convenient operation, little wearing parts etc.
Products Description
Rotary Drum Filter——Product Description
【Introduction】:A traditional external filtration type vacuum filter
【Filtering Area】:3～50m2
【Improvement】:Revolution of cylinder is stepless adjustment, a common dewatering machine.
Product Structure
Rotary Drum Filter——Product Structure
The cylinder is main part of filter. The large size cylinder is made of welded steel plate, the small size made of cast cylinder,and some old-fashioned filter cylinder made of thick wood. The filter cylinder is divided to some filtering chambers by strip along the circumferential direction. These chambers are strictly sealed without ventilation between each other. Filter plate is laid on filter chamber forming a channel for filtrate and supporting filter cloth.
The cylinder is wrapped in filter cloth in order to ensure the sealing between each chamber.
There is a pipe at one end of the cylinder body which has the same number of channels with chambers.Each channel connects with corresponding filter chamber. The transmission mechanism drives the cylinder, and could transform several speeds.
Technical Parameters
Model
Filter
Area
Cylinder Spec. (mm)
Cylinder
Rotating
Speed
(r/min)
Magnetic
Induction
(mt)
Filter Cake Moisture (%)
Gauge
Pressure
(kg/cm2)
Capacity
(t/h)
Motor
Power
(kW)
Weight
(kg)
GYW-3
3
φ1600X700
0.5-2
80
8-11
0.1-0.3
6.0-9
1.5
3270
GYW-5
5
φ2000X900
0.5-2
80
8-11
0.1-0.3
14-18
1.5
3935
GYW-8
8
φ2000X1400
0.5-2
82
5-15
0.1-0.3
22-45
1.5
4755
GYW-12
12
φ2000X2000
0.5-2
87
5-15
0.1-0.3
33-65
2.2
5420
GYW-20
20
φ2550X2650
0.5-2
87
5-15
0.1-0.3
50-108
5.5
6550
